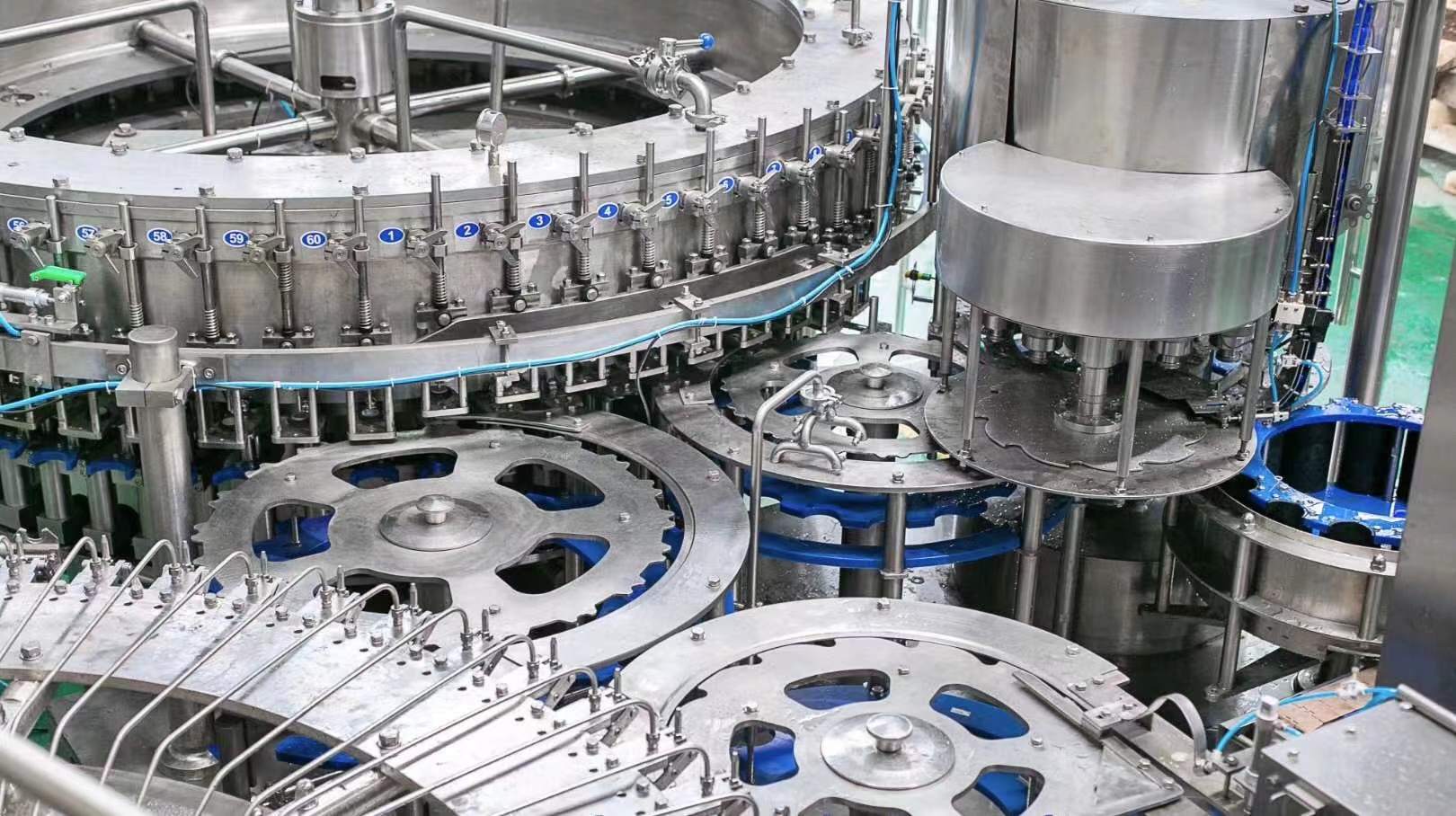

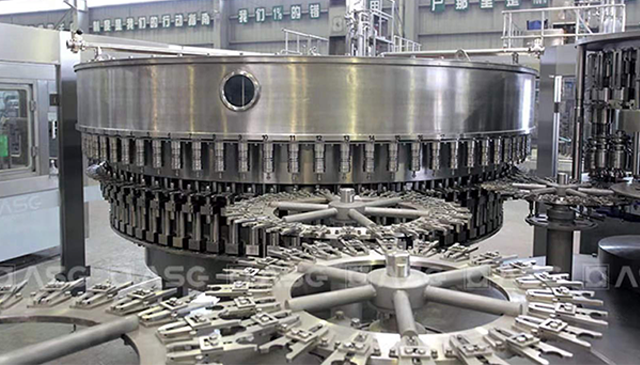

This machine has washer, filler, capper three functions in one body, automatic in total process, it is suitable for PET bottled liquid,water, mineral water energy drink etc. It makes by high quality SUS304, key parts are precision machined by NC tool. The total machine uses advanced photoelectric detection technology to detect each part's operation status, no bottle no filling, and no bottle no capping, automatic and easy operation.
| Type | Filling Machine |
| Application | Beverage |
| Packaging Type | Bottles |
| Packaging Material | Plastic, Glass |
| Driven Type | Electric |
| Voltage | 220V/380V ( Customized) |
| Dimension(L*W*H) | 2900*2200*2300mm |
| Weight | KG |
| Key Selling Points | Competitive Price |
| Filling Material | Milk, Water, Oil, Juice |
| Filling Accuracy | 99% |
| Core Components | Motor, Pump, PLC |
| Product Name | Energy Drink Beverage Filling Machine |
| Bottle Type | Glass bottle , PET bottle |
| Capacity | 2000-24000bph |
| Usage | Beverage Packaging |
| Processing | Washing, Filling, Capping |
| After Warranty Service | Spare parts |
| Model | Capacity | Rinsing heads | Filling heads | Sealing heads | Overall dimensions |
| 2000bph | 8 | 8 | 3 | 2000*1500*2000mm | |
| 5000bph | 8 | 8 | 3 | 2500 *1800*2100mm | |
| 4000bph | 12 | 12 | 5 | 1850 *1250*2200mm | |
| 8000bph | 18 | 18 | 6 | 2500*1800*2200mm | |
| 12000bph | 24 | 24 | 6 | 3280*1740*2200mm | |
| 15000bph | 32 | 32 | 8 | 3600*2750*2200mm | |
| 18000bph | 40 | 40 | 12 | 4200*3200*2200mm | |
| 21000bph | 50 | 50 | 12 | 4500*3450*2200mm | |
| 24000bph | 60 | 60 | 15 | 4700*3690*3300mm |

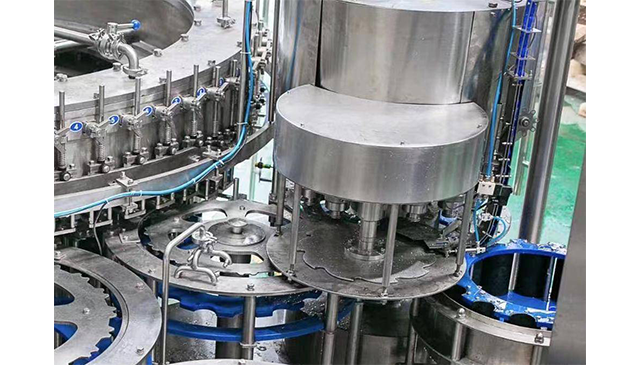

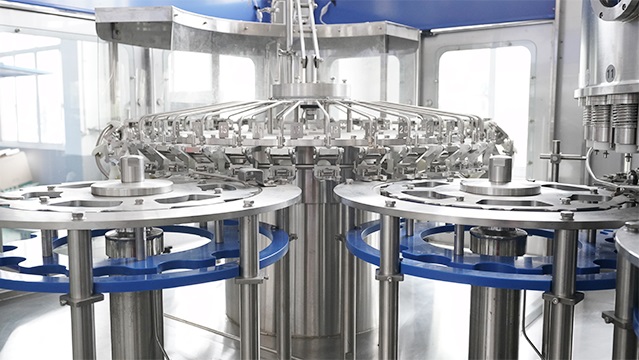

1.Into bottle way is air conveyor direct connection with bottle dial.
2.All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
3.304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
4.304/316 stainless steel washing pump make the machine more durable.

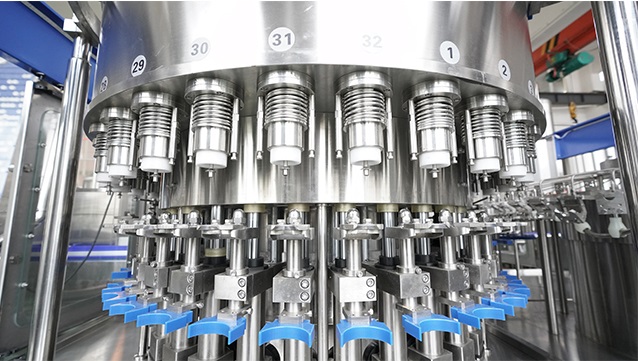

1.304/316 Stainless steel high precision filling nozzle
2. Filling volume adjustable in fine rank, same liquid level after filling
3. All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
4.304/316 stainless steel filling pump
5.Efficient spray nozzle rinse thoroughly and save water for flushing

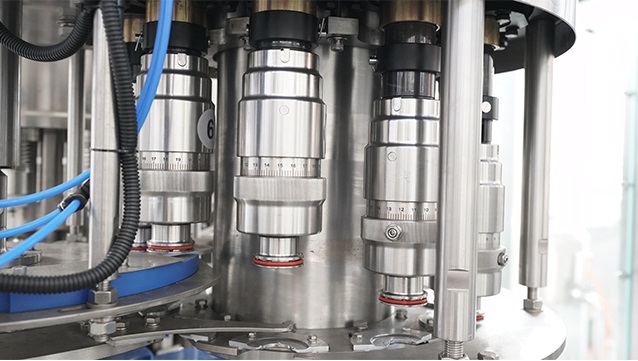

1. Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
2. All 304/316 stainless steel construction
3.No bottle no capping
4. Automatic stop when lack of bottle5.Capping effect is stable and reliable, Defective rate ≤0.2%
